AV over IP 4K 4:4:4 IP Streaming System for 10Gbps Copper Networks

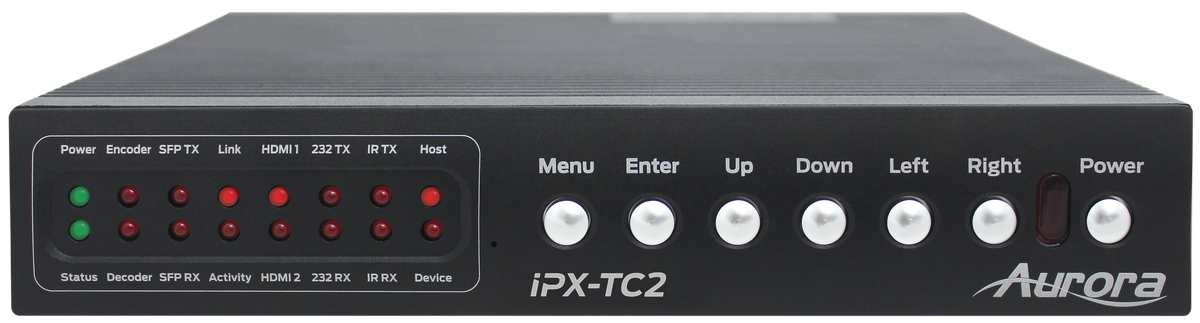

Model: IPX-TC2-C
  • 4K 60Hz 4:4:4 visually lossless compression and zero frame latency
  • 4K 30Hz 4:4:4 and below - zero compression and zero frame latency
  • Available for 10Gbps copper networks
  • Windowing/Multi-viewer (up to 16)
  • 4K Scaler
Project List
Product Info
Tech Specs
Related Products
Documents
Accessories

The IPX-TC2 provides one of the most advanced IP Streaming solutions on the market utilizing Aurora’s IPBaseT® technology, which synergizes various IP/AV standards to work together as one. IPX-TC2 supports windowing/multi-viewer (up to 16), scaling and 16×15 videowall along with HDMI 2.0 4K60 4:4:4. It is the industry’s first 4K2K transceiver with zero compression and latency based on BlueRiver NT™ platform. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard - until now. The IPX-TC2 can be set up as either one to make installation, inventory, and troubleshooting easier.

Another industry first is the option slot to add other IP capabilities, like Extreme USB® (USB 2.0 over IP) or Dante® audio, for a more complete, distributed system.

Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches. When the IPX-TC2 is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of the sources further enhances the presentation. Regardless of how the IPX-TC2 is set up, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante® enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX-TC2 USB feature can also be set as a host or a device. To keep the system friendly, a customizable OSD and web server are available to be programmed as required. For RJ-45 LAN devices, the 1G Ethernet port allows full bandwidth end-to-end over the IPX-TC2 10G fiber or copper port.  Control of the IPX system.

IPX control is available via our IPX Manager Windows® software, or the QXP-2-IPX.

Choice is important. That’s why the IPX-TC2 has an SFP+ port that can use single or multi-mode fiber - making the unit the ultimate AV IP product on the market today.

Note: The selected network switch needs to support:  10Gbps, Non-blocking IGMP.

  • 4K 60Hz 4:4:4 visually lossless compression and zero frame latency
  • 4K 30Hz 4:4:4 and below - zero compression and zero frame latency
  • Available for 10Gbps copper networks
  • Windowing/Multi-viewer (up to 16)
  • 4K Scaler
  • Seamless and breakaway switching (any resolution to any resolution)
  • Videowall processing (up to 16x16)
  • Stereo line in/out
  • RS-232 and IR control ports
  • Dante® IP audio option
  • Extreme USB® (USB 2.0 480Mbps) option
